2.4L Description
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

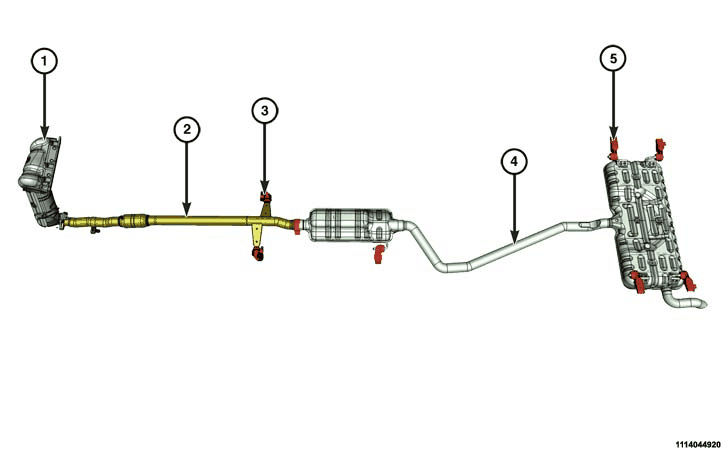

The exhaust system on the 2.4L engine models consists of an exhaust manifold/catalytic converter assembly (1), cross-under pipe (2), resonator/muffler assembly (4), band clamp, and support isolators (3, 5). The system is separated into two sections for service, the cross-under pipe and the resonator/muffler assembly. The upstream and downstream oxygen sensors are located in the exhaust manifold/catalytic converter assembly.
