Rear Catalytic Converter

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

If equipped with 4WD, position and secure the catalytic converter towards the front of the engine.
If equipped with 4WD , install the Power Transfer Unit (PTU). Refer to INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

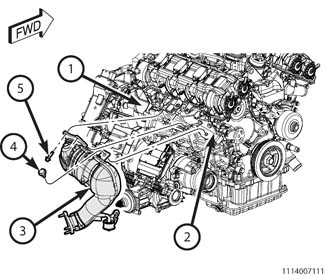

Position the catalytic converter (3) against the cylinder head. Position the converter flange (2) to the retainer.

Courtesy of CHRYSLER GROUP, LLC
Install the upper flange bolts (5). Tighten upper bolts to 23 N.m (17 ft. lbs.).

Courtesy of CHRYSLER GROUP, LLC

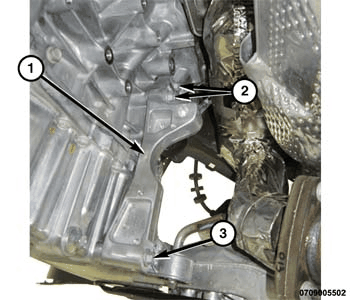

If equipped with 2WD , install the intermediate shaft support bracket. Tighten upper bolts to 23 N.m (17 ft. lbs.).

Courtesy of CHRYSLER GROUP, LLC

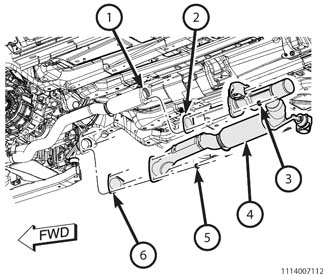

Position the Y-pipe (4) to the rear catalytic converter. Tighten upper bolts to 26 N.m (19 ft. lbs.).

Courtesy of CHRYSLER GROUP, LLC
Loosely install the upper support bracket bolt (1). Tighten upper bolt to 23 N.m (17 ft. lbs.).

Courtesy of CHRYSLER GROUP, LLC

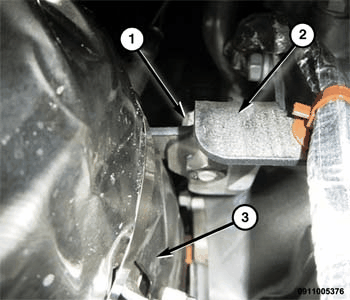

Install the belly pan (1).
Lower the vehicle.
NOTE:
Be careful not to twist or kink the oxygen sensor wires.

Courtesy of CHRYSLER GROUP, LLC

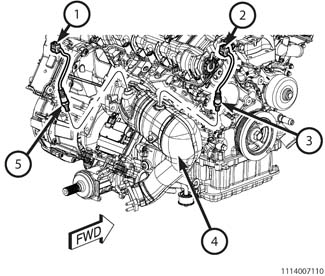

If removed, install the O2 sensors (3, 5). Tighten the O2 sensors to 50 N.m (37 ft. lbs.).

Courtesy of CHRYSLER GROUP, LLC

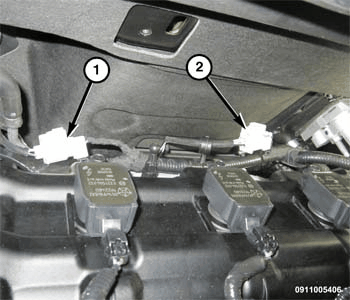

Connect the O2 sensors electrical connectors.

Courtesy of CHRYSLER GROUP, LLC
Install the air intake resonator (1).
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
