Tray, Battery: Description
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

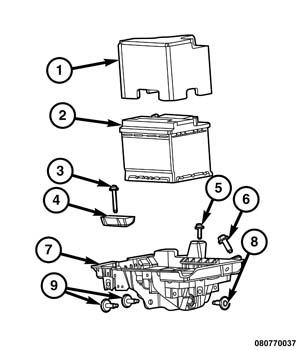

The battery (2) is placed and secured in a plastic molded battery tray (7). The battery tray is located in the left front side of the vehicle, just ahead of the left front wheel and tire assembly. The battery tray is secured to the left front frame rail.
