Section 30 (Battery System (Service Information)): Battery: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Position the battery onto the battery tray.
 Courtesy of CHRYSLER GROUP, LLC
|
- Install the battery thermal cover.

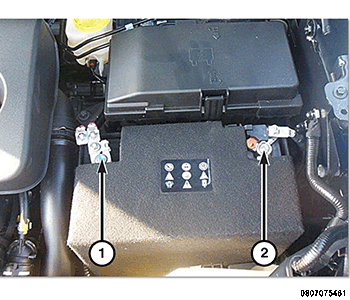

- Connect the battery positive cable (1). Tighten to 7 N.m (62 in. lbs.).
- Install the negative battery cable end (2) to the negative battery terminal.
 Courtesy of CHRYSLER GROUP, LLC
|
- Tighten the captive clamp nut (1) to 6 N.m (53 in. lbs.).
