Deploy Bracket, C And D-Pillar
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the side curtain airbag (also known as Side AirBag Inflatable Curtain/SABIC) from the vehicle. Refer to AIR BAG, SIDE CURTAIN, REMOVAL .

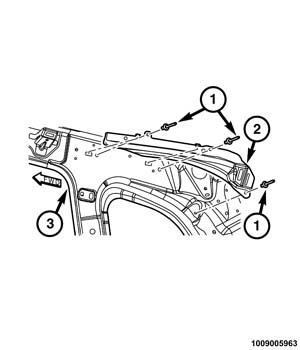

- Remove the three blind rivets (1) that secure the deploy bracket (2) near the tops of the C-pillar (3) and D-pillar.
- Disengage the tabs at the top of the bracket from the locator holes in the upper inner C-pillar.
- Remove the deploy bracket from the vehicle and discard.
