Deploy Bracket, B-Pillar

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

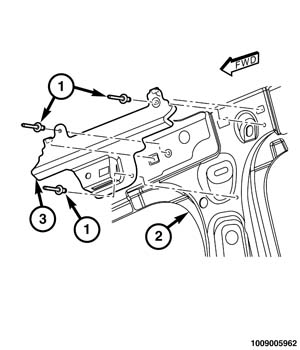

GC0160016Courtesy of CHRYSLER GROUP, LLC
  1. Remove the side curtain airbag (also known as Side AirBag Inflatable Curtain/SABIC) from the vehicle. Refer to AIR BAG, SIDE CURTAIN, REMOVAL .
  2. Remove the three blind rivets (1) that secure the deploy bracket (3) near the top of the B-pillar (2).
  3. Slide the bracket upward far enough to disengage the tabs at the top of the bracket from the locator holes in the inner B-pillar and roof rail.
  4. Remove the deploy bracket from the vehicle and discard.
