Power Transfer Unit (PTU) Fluid Fill

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. If equipped, remove the skid plate. Refer to PLATE, SKID, TRANSMISSION, REMOVAL .

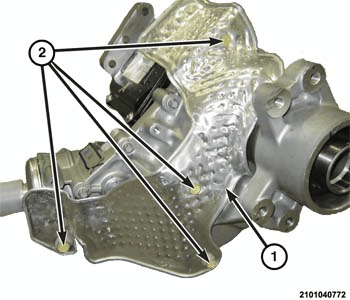

    GC0162206Courtesy of CHRYSLER GROUP, LLC
  3. Remove the four heat shield bolts (2) holding the heat shield (1) to the Power Transfer Unit (PTU) and remove the heat shield.

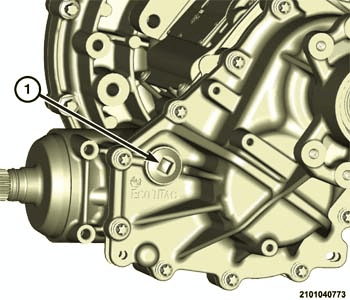

    GC0162238Courtesy of CHRYSLER GROUP, LLC

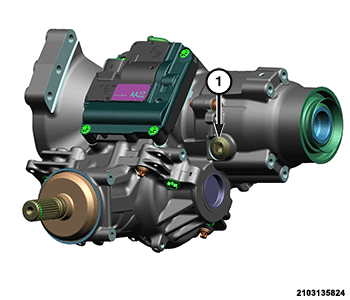

    GC0177011Courtesy of CHRYSLER GROUP, LLC
  4. Position a drain pan under the PTU fill plug.
  5. Remove the PTU fill plug (1).
  6. Fill the PTU to the bottom of the PTU fill plug hole using the specified fluid. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
    NOTE:

    It may take several minutes for the fluid to equalize in the PTU before a final fluid level check can be determined.

  7. Install PTU fill plug (1) and tighten to the proper. Refer to TECHNICAL SPECIFICATIONS .
    GC0162206Courtesy of CHRYSLER GROUP, LLC
  8. Install the PTU heat shield (1) and tighten the heat shield bolts (2) to the proper. Refer to TECHNICAL SPECIFICATIONS .
  9. If equipped, install the skid plate. Refer to PLATE, SKID, TRANSMISSION, INSTALLATION .
  10. Lower vehicle.
