Two Speed PTU

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0159809Courtesy of CHRYSLER GROUP, LLC
  1. Apply assembly lube on the lip of the seal to aid installation onto the output shaft.

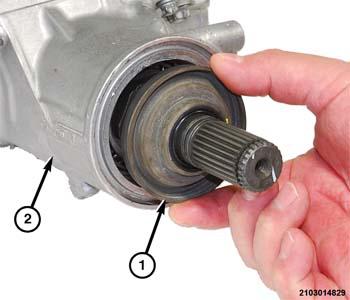

  2. Place the NEW seal (1) in position on the PTU (2) rear output shaft.
    GC0159791Courtesy of CHRYSLER GROUP, LLC

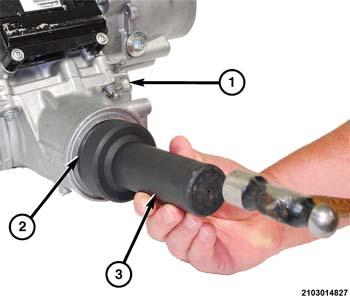

  3. Using tool (3) (special tool #10117, Installer, Seal), install the NEW seal (2) into the PTU lower housing (1).
  4. Remove the drain pan from under the PTU output shaft.
    GC0159486Courtesy of CHRYSLER GROUP, LLC

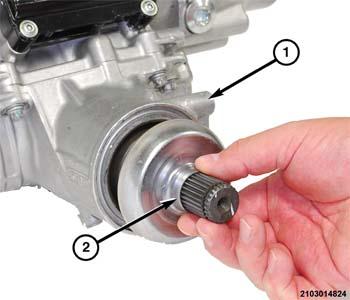

  5. Place the dust deflector (2) in position on the rear output shaft (1).
    GC0159850Courtesy of CHRYSLER GROUP, LLC

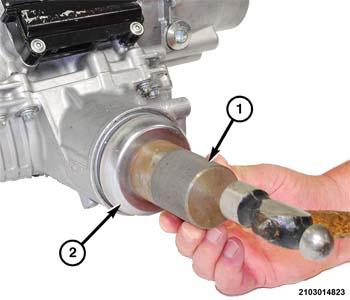

  6. Using tool (special tool #10518, Installer, Oil Slinger) (1), Install the dust deflector (2).
    GC0159998Courtesy of CHRYSLER GROUP, LLC

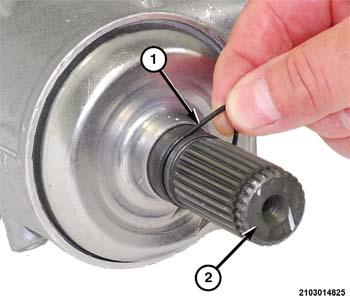

  7. Install the O-ring seal (1) in the groove in the rear output shaft (2).
    GC0159481Courtesy of CHRYSLER GROUP, LLC

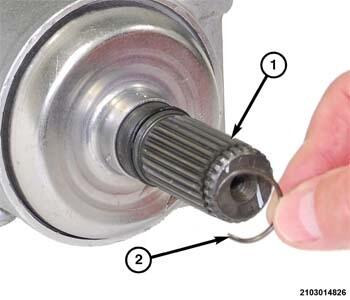

  8. Install the Cir-clip (2) in the groove in the rear output shaft (1).
  9. Install the rear drive shaft in the vehicle. Refer to INSTALLATION .
  10. Fill the PTU to the proper level with the Mopar® 75W90 fluid.
  11. Lower the vehicle.
  12. Road test the vehicle to verify the repair.
