Seal, Axle Drive Shaft, Outer: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle
Refer to HOISTING, STANDARD PROCEDURE .
- Place a suitable drain pan under the PTU to catch fluid that may spill when the seal is removed.
- Remove right halfshaft Refer to REMOVAL
.

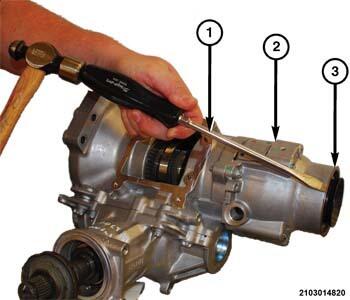

- Using a suitable screw driver (1), remove the output shaft seal (3) from the PTU housing (2).
