Plug, Ring Gear Shaft: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the PTU from the vehicle.
  2. Place the PTU on a suitable work surface.

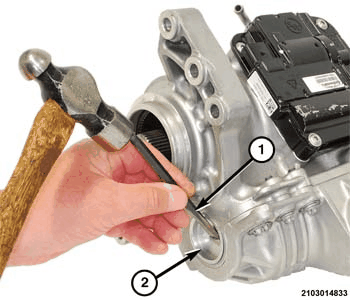

    GC0159515Courtesy of CHRYSLER GROUP, LLC
  3. Using a suitable sharp chisel (1), pierce a hole in the center of the plug (2).

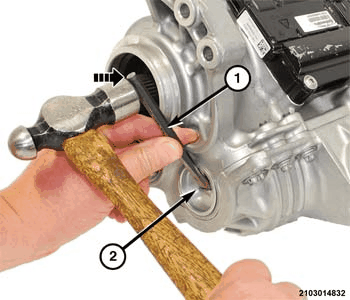

    GC0159200Courtesy of CHRYSLER GROUP, LLC
  4. Drive the chisel (1) side ways to lever the plug (2) out of the PTU.

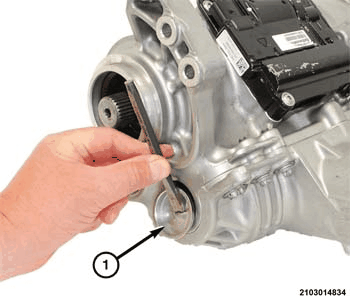

    GC0159318Courtesy of CHRYSLER GROUP, LLC
  5. Separate the plug (1) from the PTU.
