PTU Disassembly

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The Power Transfer Unit (PTU) is serviced as an assembly when mechanical failure is evident. If the PTU is leaking fluid, the lip seals can be replaced.

NOTE:

One speed shown in illustration, two speed similar.

Remove the PTU from the vehicle. Refer to REMOVAL .
Place the PTU on a suitable, clean and stable work surface.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
The PTU can be drained by turning it upside down, once the shift actuator is removed.

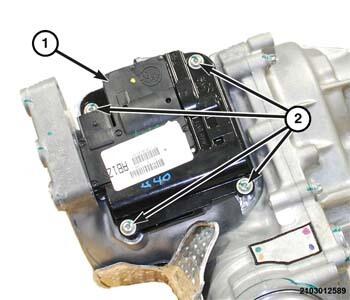

Remove and discard the shift actuator mounting screws (2) and remove the PTU shift actuator (1).
NOTE:
It is not necessary to remove the intermediate shaft from the PTU to service the seals.

Courtesy of CHRYSLER GROUP, LLC

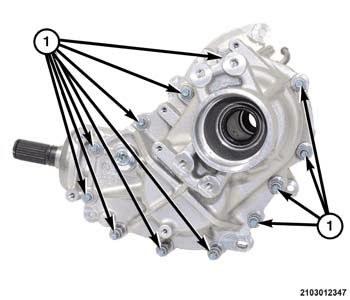

Remove the bolts (1) holding the PTU housing halves together.

Courtesy of CHRYSLER GROUP, LLC

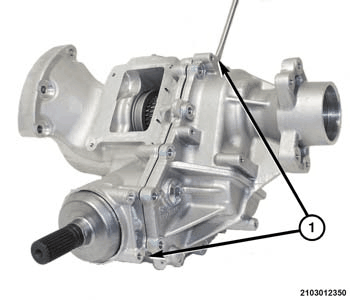

Using a suitable pry bar, pry the two halves of the PTU housing apart using the pry points (1) provided.

Courtesy of CHRYSLER GROUP, LLC

.

NOTE:
When separating the housing, bearings and preload shims may dislodge. Make note of bearing cup and shim location for proper reassembly.

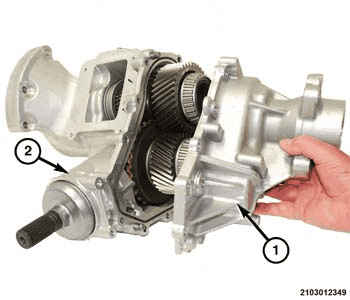

Carefully separate the right housing (1) from the PTU housing (2).

Courtesy of CHRYSLER GROUP, LLC

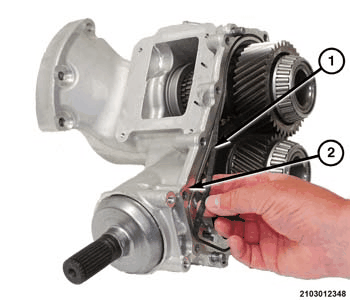

Remove the gasket (1) from the groove in the PTU housing (2).

Courtesy of CHRYSLER GROUP, LLC

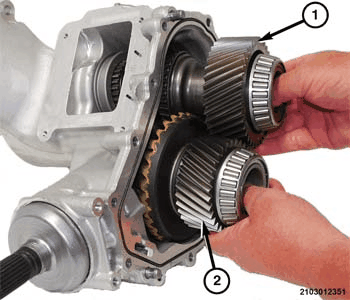

Pull the input gear (1) and output ring gear (2) from the PTU housing together.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Note the orientation of the tapered splines in the dog clutch sleeve for reassembly.
Remove the dog clutch sleeve (1) from the input shaft.

Courtesy of CHRYSLER GROUP, LLC

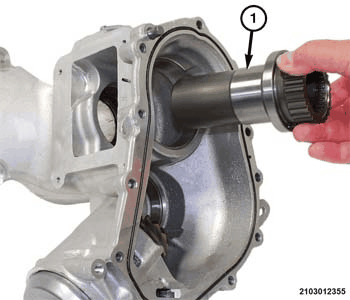

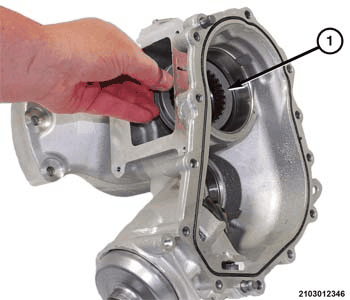

Remove the input shaft (1) and bearing from the PTU housing.

Courtesy of CHRYSLER GROUP, LLC

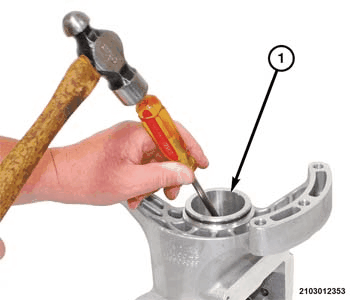

Using a suitable screw driver:
- remove the single seal from the PTU housing (1) if the PTU is from an automatic transmission equipped vehicle.
- remove both the inner and outer input shaft seals from the PTU housing (1) if the PTU is from a manual transmission equipped vehicle.
Courtesy of CHRYSLER GROUP, LLC

NOTE:
When equipped with a manual transmission, the input shaft contains two opposing seals. The inner lip seal keeps PTU fluid from entering the transmission, the outer lip seal keeps transmission fluid from entering the PTU when equipped with a manual transmission. There is a weep hole in the cavity between the two seals. When equipped with an automatic transmission, there is only the input shaft only contains the outer seal.

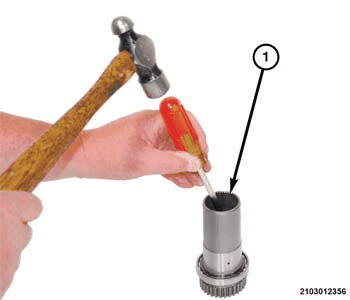

Using a suitable screw driver;
- remove the single seal from the inside the input shaft (1) if the PTU is from an automatic transmission equipped vehicle.
- remove both the inner and outer input shaft seals from the inside the input shaft (1) if the PTU is from a manual transmission equipped vehicle.
