Two Speed PTU

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the PTU actuator is functional and is being removed to correct a fluid leak, the PTU should be placed in the 2WD mode before removing the PTU from the vehicle. If the actuator is not functional the actuator can be removed when the PTU is not in the 2WD mode, but it will be difficult to install the shift forks on the shift sleeves.

Remove the PTU from the vehicle.
Place the PTU on a suitable work surface

Courtesy of CHRYSLER GROUP, LLC

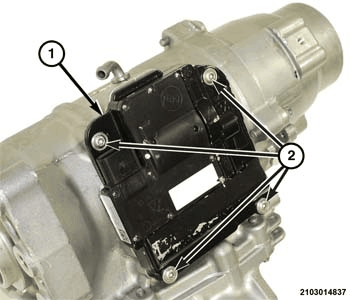

Remove the screws (2) holding the shift actuator (1) to the PTU housing. Discard the screws.

Courtesy of CHRYSLER GROUP, LLC

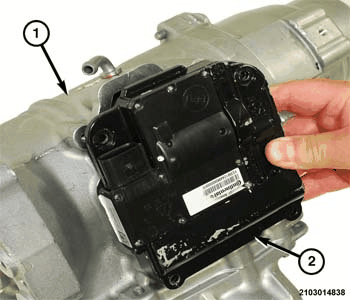

Separate the shift actuator (2) from the PTU (1).

Courtesy of CHRYSLER GROUP, LLC

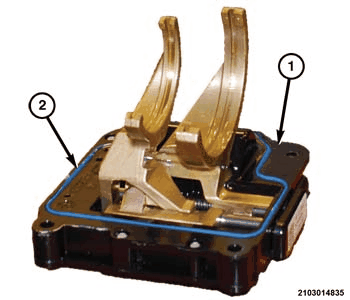

Remove the gasket (2) from the groove in the shift actuator sealing surface (1).
