Shift Actuator Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Power Transfer Unit (PTU) from the vehicle. Refer to REMOVAL .
  2. Place the PTU on a suitable, clean and stable work surface.
    GC0160113Courtesy of CHRYSLER GROUP, LLC
  3. Remove and discard the shift actuator screws (2).
  4. Separate the shift actuator (1) from the PTU.

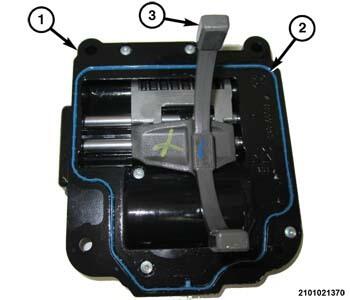

    GC0159872Courtesy of CHRYSLER GROUP, LLC
  5. Remove the gasket (2) from the groove in the shift actuator (1).
