Gear Shifter Assembly Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL .

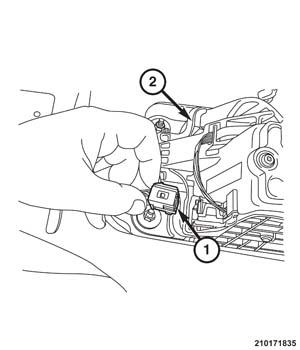

    GC0154852Courtesy of CHRYSLER GROUP, LLC
  3. Release the shifter assembly wire connector lock and disconnect the gear shifter lever position sensor wire harness connector (1) from the shifter assembly (2).

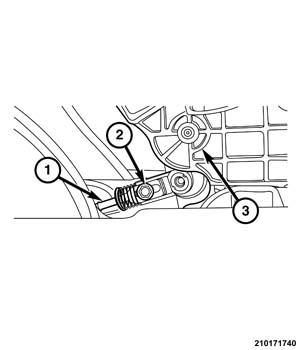

    GC0154802Courtesy of CHRYSLER GROUP, LLC
  4. Pry the gear shift cable end (2) from the pin under the shifter assembly (3).
  5. Release the shift cable housing retainer and disengage the cable from the shifter assembly.

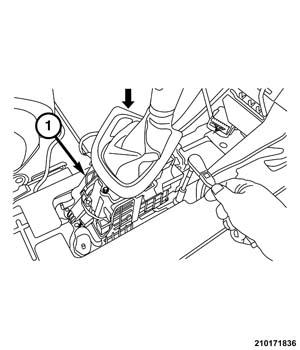

    GC0154968Courtesy of CHRYSLER GROUP, LLC
  6. Remove the nuts holding the gear shifter to the floor.
  7. Remove the gear shifter from the vehicle.
