Shifter Knob Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

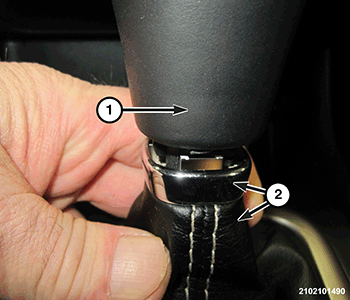

- Pull the shifter boot (2) down from shifter knob (1).
 Courtesy of CHRYSLER GROUP, LLC
|

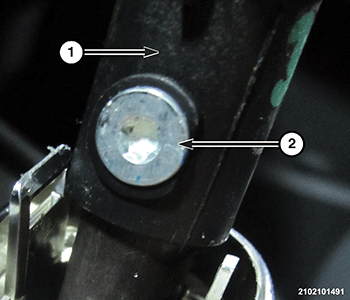

NOTE:
Left side screw shown in illustrration, the right side screw is located 180° from the screw shown.
- Remove the two screws (2) at the bottom of the shifter knob (1).
- Remove the knob (1).
