BTSI Override

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

If a malfunction occurs and the shift lever cannot be moved out of the PARK position, you can use the following procedure to temporarily move the shift lever.

  1. Turn the engine OFF.
  2. Apply the parking brake.

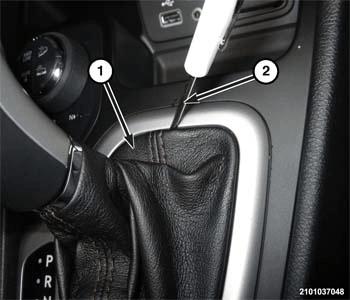

    GC0159606Courtesy of CHRYSLER GROUP, LLC
  3. Using a trim stick (2) or similar tool, carefully separate the shifter bezel and boot assembly (1) from the center console bezel.
  4. Press and maintain firm pressure on the brake pedal.

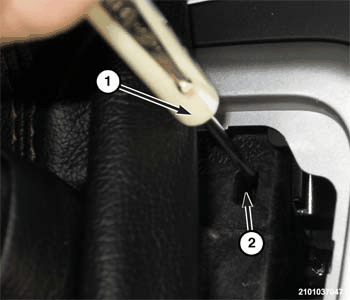

    GC0159871Courtesy of CHRYSLER GROUP, LLC
  5. Insert a small screwdriver (1) or similar tool down into the shift lever override access hole (2) (at the right front corner of the shift lever assembly), and push and hold the override release lever down.
  6. Move the shift lever to the NEUTRAL position
  7. The vehicle may then be started in NEUTRAL.
  8. Reinstall the shift lever boot.
