Axle Seal Removal - 4WD - Right Side

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Power Transfer Unit (PTU). Refer to REMOVAL .
    GC0159518Courtesy of CHRYSLER GROUP, LLC
  2. Using tool (special tool #7794-A, Remover, Seal) and (special tool #C-637, Slide Hammer, Universal), Remove the adapter sleeve from the transmission.
    GC0159924Courtesy of CHRYSLER GROUP, LLC
  3. Using tool (special tool #9667, Remover, Seal) (2) and (special tool #C-3752, Slide Hammers) (1), remove the seal from the transmission.
    GC0160136Courtesy of CHRYSLER GROUP, LLC
  4. Position the adapter sleeve on the work surface with the seal tension spring down.

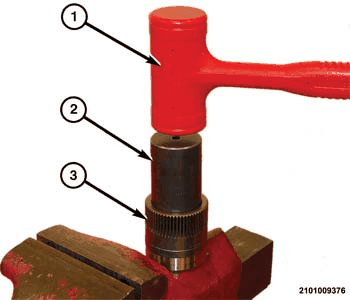

    GC0159483Courtesy of CHRYSLER GROUP, LLC
  5. Insert tool (special tool #9611, Plug, Differential End) (2) into the outer end of the adapter sleeve (3).
  6. Using a suitable hammer (1), drive the seal from the inside of the adapter sleeve (3).
