Transfer Gear Outer Race Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transmission. Refer to REMOVAL .
Using a dial indicator, measure the input shaft end-play.
Remove the bellhousing. Refer to BELLHOUSING, REMOVAL .
Position the bellhousing on a stable, clean work surface.

Courtesy of CHRYSLER GROUP, LLC

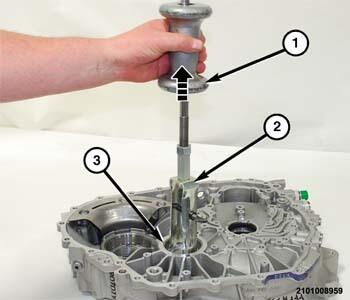

Using tool (special tool #C-637, Slide Hammer, Universal) (1) and (special tool #9664, Remover, Bearing Cup) (2) with the tool fingers inserted in the channels behind the transfer gear outer bearing race (3), remove the transfer gear outer bearing race (3) from the bellhousing bore.
