Transfer Gear Inner Bearing Installation

The work area, counter surfaces and tools must be thoroughly cleaned before attempting to assemble the 948TE transmission. All of the sub assemblies should be disassembled, cleaned, and assembled with new sealing components where applicable. The transmission housing should be clean and oil free before beginning this procedure. If the transmission was contaminated with metallic material, all of the thrust bearings and roller bearings should be replaced. The bearing in the output gear support assembly is not serviceable. The output gear support assembly should be replaced if metal debris is present.

Courtesy of CHRYSLER GROUP, LLC

1. Using tool (special tool #6888, Installer, Seal) (2), and handle (special tool #C-4171, Driver Handle, Universal) (3) install the transfer gear bearing cone (1) onto the transmission housing.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the annulus gear 4 (1) in the annulus gear 3 (2).

   Courtesy of CHRYSLER GROUP, LLC

3. Install a NEW  thrust spacer (1) on the underside of the gear 4 planetary pinion carrier (2).

   Courtesy of CHRYSLER GROUP, LLC

4. Install a NEW  thrust spacer (1) on the topside of the gear 4 planetary pinion carrier (2).

   Courtesy of CHRYSLER GROUP, LLC

5. Install the gear 4 planetary pinion carrier (1) into the annulus gear 4.

   Courtesy of CHRYSLER GROUP, LLC

6. Install the sun gear 3 and 4 and Dog Clutch-F (1) in the gear 4 planetary pinion carrier.

   Courtesy of CHRYSLER GROUP, LLC

7. Install the roller type thrust bearing (1) onto the sun gear 3 and 4 and Dog Clutch-F (2).

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   If a new transfer gear (1) or transmission housing are being used, measurements must be preformed to determine correct thickness for the bearing preload shims

   Refer to STANDARD PROCEDURES .

   If the bearings and races are replaced the factory installed preload shims do not require replacement.

8. If necessary, replace the bearings and races on the transfer gear (1).
9. Install the transfer gear (1) into the transmission housing.

   Courtesy of CHRYSLER GROUP, LLC

10. Install the output gear support (1) into the gear 4 planetary pinion carrier (2).

    Courtesy of CHRYSLER GROUP, LLC

11. Install the E-clutch hub and shaft (1) in the output gear support (2).

    Courtesy of CHRYSLER GROUP, LLC

12. Install the thrust bearing (1) on the E-clutch (2) hub.

    Courtesy of CHRYSLER GROUP, LLC

    NOTE:

    Before installing the E-clutch, use a suitable screwdriver to align the grooves in the friction discs.

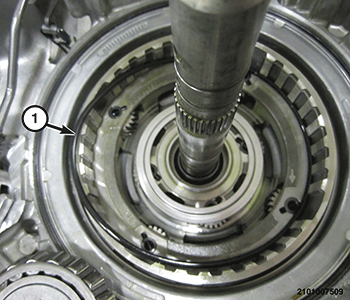

13. Wriggle the E-clutch (1) until all of the friction discs are fully engaged on the E-clutch hub and shaft.
    NOTE:

    When the E-clutch (1) is fully seated the gap (2) will be very small between the E-clutch retainer and the output gear support.

    Courtesy of CHRYSLER GROUP, LLC

    NOTE:

    If a new differential (1) or transmission housing are being used, measurements must be preformed to determine correct thickness for the bearing preload shims. If the bearings and races are replaced the factory installed preload shims do not require replacement. Refer to STANDARD PROCEDURES .

14. If necessary, replace the bearings and races on the differential (1).
15. Install the differential assembly (1) into the transmission housing.
16. Install the bellhousing. Refer to BELLHOUSING, INSTALLATION .
17. Install the transmission in the vehicle. Refer to INSTALLATION .
18. Road test the vehicle to verify the repair.
