Stand Alone Switch Bracket

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

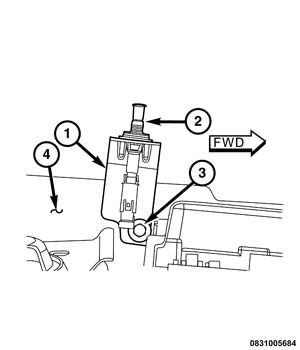

GC0159944Courtesy of CHRYSLER GROUP, LLC
  1. Remove the stand alone hood ajar switch (2) from the mounting bracket (1). Refer to SWITCH, HOOD AJAR, REMOVAL .
  2. Remove the screw (3) that secures the mounting bracket to the left front fender load beam (4).
  3. Remove the mounting bracket from the left front fender load beam.
