Module, Ultrasonic And Anti-Tilt: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

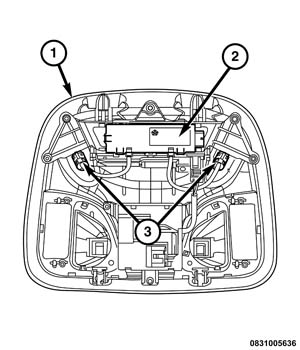

GC0159677Courtesy of CHRYSLER GROUP, LLC
  1. Position the Ultrasonic and Antitilt Module (UAM) (2) and both transducers (3) to the inside surface of the overhead console trim cover (1).
  2. Latch the UAM into the mounting provisions integral to the inside surface of the console trim cover.
  3. Carefully insert and rotate each of the two UAM transducers about 30 degrees clockwise into the rearward-facing receptacles on each side of the console trim cover inside surface.
  4. Install the overhead console onto the headliner. Refer to CONSOLE, OVERHEAD, FRONT, INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
