Shield, Underbody: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

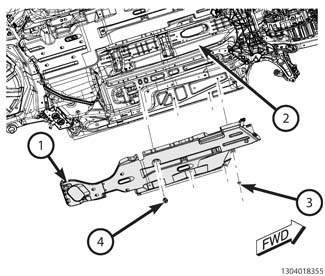

Right side shown, left side typical.
- Raise and support the vehicle.
- Remove the two push pin fasteners (4)
- Remove the two retaining nuts (3) that secure the underbody shield (1) to the vehicle underbody (2).
- Remove the seven fasteners that secure the underbody shield (1) to the vehicle underbody (2).
- Remove the underbody shield (1) from the vehicle.
