Isolator, Rear CROSSMEMBER, Frame: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear crossmember. Refer to CROSSMEMBER, REAR SUSPENSION, REMOVAL .NOTE:
Prior to using special tools, lubricate Press, Ball Joint: C-4212F (3) threads to provide ease of use and promote tool longevity.

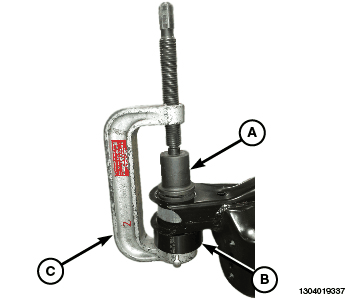

- Assemble tools over isolator crossmember assembly as shown:
- (special tool #9958-3, Installer, Bushing)
- (special tool #10106-2, Receiver, Depth Setting)
- (special tool #C-4212F, Press, Ball Joint)
- Tighten Press, Ball Joint C-4212F (c) screw-drive, pressing isolator out of the crossmember.
