Isolator, Rear CROSSMEMBER, Differential: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear driveline unit. Refer to REMOVAL .
- Remove the bolts (1) and lower the rear suspension stabilizer bar (2).NOTE:
Prior to using special tools, lubricate Press, Ball Joint: C-4212F threads to provide ease of use and promote tool longevity.

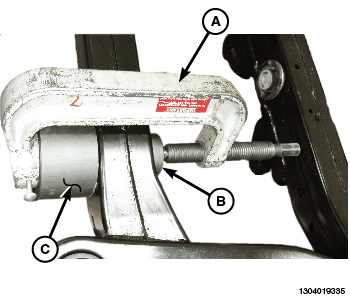

- Assemble tools over isolator crossmember assembly as shown:
- (special tool #C-4212F, Press, Ball Joint)
- (special tool #8858-6, Remover)
- (special tool #8861-2, Receiver, Balljoint)
- Tighten Press, Ball Joint C-4212F screw-drive, pressing isolator out of the crossmember.
