Isolator, Rear CROSSMEMBER, Differential: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Prior to using special tools, lubricate Press, Ball Joint: C-4212F (3) threads to provide ease of use and promote tool longevity.

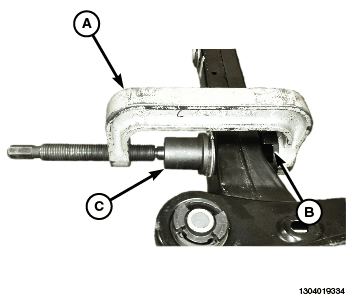

- Assemble tools over isolator crossmember assembly as shown:
- (special tool #C-4212F, Press, Ball Joint)
- (special tool #9031-4, Installer, Bushing)
- Pusher 9958-3 of (special tool #9958, Remover/Installer, Axle Bushing)
- Tighten Press, Ball Joint C-4212F (A) screw-drive, pressing isolator into crossmember. Install isolator until isolator can flange contacts surface of crossmember.
- Remove the tools.

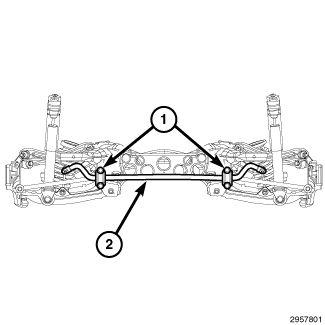

- Position the stabilizer bar (2) and install the upper and lower stabilizer bar to cradle bolts (1) and tighten to the proper torque. Refer to TECHNICAL SPECIFICATIONS .
- Install the rear differential. Refer to INSTALLATION .
