Hook(S), Tow, Front: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

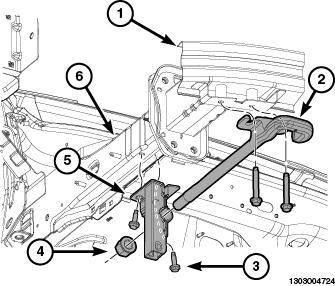

GC0159686Courtesy of CHRYSLER GROUP, LLC
  1. Install the bracket (5) and install the bolts (3)
  2. Install the hook (2).
  3. Install the bolts and install the nut (4).
