Forward Cargo Floor

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

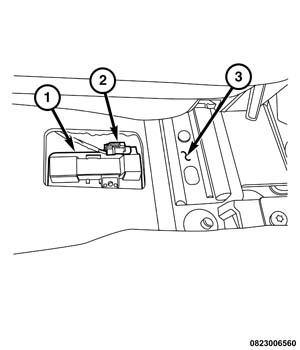

GC0159315Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Fold and move forward the drivers side second row set. Next to the left side of the right side seat track (3) is a cover cut into the carpet. Fold this cover up to expose the LF antenna (1).
  3. Disconnect the body wire harness connector from the Low Frequency (LF) antenna connector receptacle (2).
  4. Remove the fasteners that secure the antenna in position.
  5. Remove the LF antenna.
