Center Floor Console

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

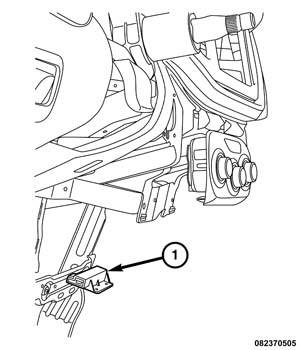

GC0156095Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the center floor console from the vehicle. Refer to CONSOLE, FLOOR, REMOVAL .
  3. Disconnect the wire harness connector from the connector receptacle for the Low Frequency (LF) antenna (1) beneath the front of the console.
  4. Remove the two screws that secure the antenna to the bracket beneath the front of the console.
  5. Remove the antenna from the console.
