Rear Door

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

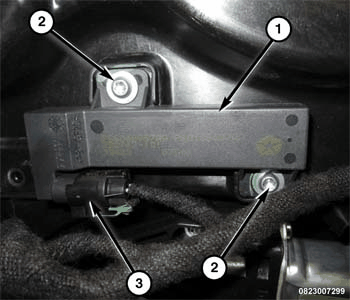

GC0159405Courtesy of CHRYSLER GROUP, LLC
  1. Position the Low Frequency (LF) antenna (1) to the rear door hardware module carrier.
  2. Install and tighten the two screws (2) that secure the antenna to the carrier.
  3. Connect the door wire harness connector (3) to the antenna connector receptacle.
  4. Install the trim panel onto the inside of the rear door. Refer to PANEL, REAR DOOR TRIM, INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
