Trough, Sunroof: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front glass to the vent position.

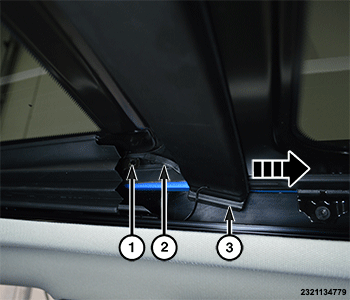

    GC0177009Courtesy of CHRYSLER GROUP, LLC
  2. Release the ends (2) from the guide (1) at each end, then push the drain trough (3) rearward at one end and remove.
