Seal, Front Sunroof Glass: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the surface before installing the new seal.
- Position the new seal (1) onto the sunroof glass assembly (2).

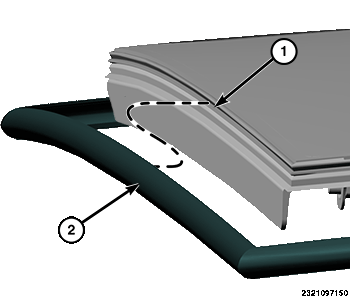

- With the sunroof glass in a partly opened position, install the front portion of the seal (2) into the notch in the glass (1).
- Position the sunroof in the vent position and install the rear portion of the seal into the notch on the sunroof glass assembly.
- Lubricate the seal.
