Parts List
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

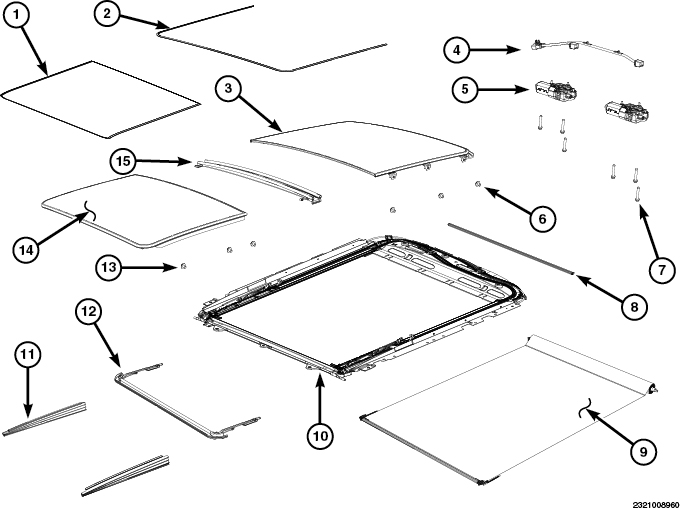

PARTS LIST
| 1 - FRONT GLASS PANEL SEAL | 9 - ROLLER SUNSHADE |
| 2 - REAR GLASS PANEL SEAL | 10 - SUNROOF FRAME ASSEMBLY |
| 3 - REAR GLASS PANEL | 11 - MECHANISM COVERS |
| 4 - WIRE HARNESS | 12 - WIND DEFLECTOR |
| 5 - MOTORS | 13 - FRONT GLASS FASTENERS (6) 4.5 N.m (40 in. lbs.) |
| 6 - REAR GLASS FASTENERS (6) 4.5 N.m (40 in. lbs.) | 14 - FRONT GLASS PANEL |
| 7 - MOTOR SCREWS 4 N.m (35 in. lbs.) | 15 - DRAIN TROUGH |
| 8 - TENSION BAR |
