Cover, Sunroof Mechanism: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Obtain a NEW
mechanism cover.

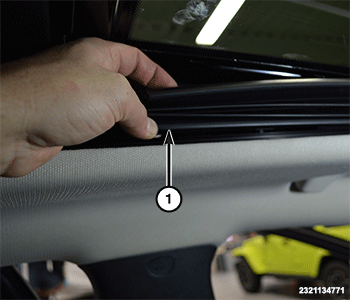

- Install the mechanism cover (1) onto the lower guide, and clip it along the entire bottom edge.
- Carefully install the top flange of the mechanism cover to the glass panel.NOTE:
Use an installing block to seat the cover evenly. If not installed properly the cover will deform and will need to be replaced.
