Body Gap And Flush Measurements

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

All measurements are in millimeters.

O/F = Over Flush
U/D = Up/Down
U/F = Under Flush
F/A = Fore/Aft

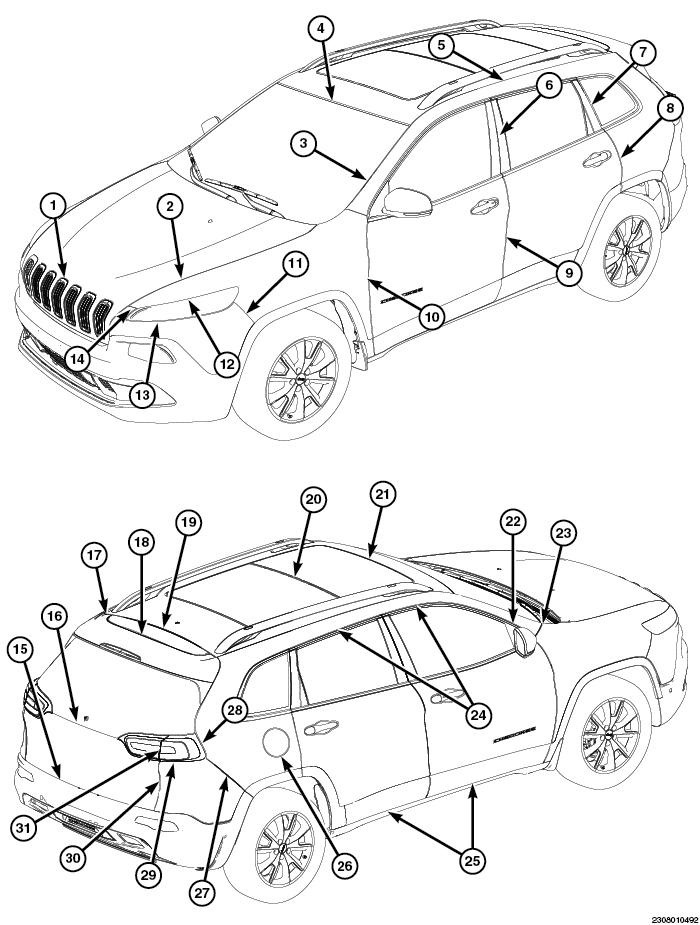

DIMENSION	DESCRIPTION	GAP	FLUSH
1	Grille Ring to Hood	1.0 +/- 0.5	-
2	Hood to Fender	3.5 +/- 1.5	0.0 +/- 1.5
		Parallel within 1.0	0.0 +/- 1.0
		Side to side within 2.0	Hood U/D within 1.0 of curve
3	Windshield to A-pillar	4.0 +/- 2.0	-
4	Windshield to Roof	6.5 +/- 2.0	Windshield U/F 2.0 +/- 1.5
5	Roof to Body Side Aperture	-	Roof U/F 6.5 +/- 1.5 Transition to 8.0 in rear
6	Front Door Applique to Rear Door Applique	4.0 +/- 2.0	0.0 +/- 1.5
		Parallel within 1.5
7	Quarter Glass to Rear Door Applique	4.0 +/- 1.5	Quarter Glass O/F 1.0 +/- 1.5
		Parallel within 1.0
8	Rear Door to Body Side Aperture	3.5 +/- 1.0	0.0 +/- 1.0
		Parallel within 1.0
9	Front Door to Rear Door	3.5 +/- 1.0	Front Door O/F 0.5 +/- 1.0
		Parallel within 1.0
10	Fender to Front Door	3.5 +/- 1.0	Fender O/F 0.5 +/- 1.0
	Feature Line U/D 0.0 +/- 1.0	Parallel within 1.0
11	Upper Fascia to Fender	0.0 +/- 0.5	0.0 +/- 0.5
12	Daylight Running Lamp to Fender	1.0 +/- 1.0	Lamp U/F 1.0+/- 0.5
13	Daylight Running Lamp to Fascia	1.0 +/- 1.0	Lamp U/F 1.5+/- 1.0
14	Upper Fascia to Fender	0.0 +/- 1.0	Fascia O/F 0.5 +/- 0.5
			Cross Car 0.0 +/- 1.0
15	Fascia to Liftgate	5.5 +/- 1.5	0.0 +/- inboard transitioning to O/F 4.0 outboard
		Parallel within 1.5
16	Liftgate to Liftgate Glass	4.0 +/- 1.5	Liftgate U/F 0.5 +/- 1.5
17	Spoiler to Body Side Aperture	5.0 +/- 1.5	Spoiler U/F 3.0 +/- 1.5
		Parallel within 1.5	Consistent within 1.5
18	Spoiler to Roof	6.0 +/- 1.5	Spoiler U/F 2.0 +/- 1.5
		Parallel within 1.5	Consistent within 1.5
19	Liftgate to Roof	6.0 +/- 1.0	Liftgate U/F 2.0 +/- 1.0
		Parallel within 0.5	Consistent within 1.0
20	Rear Sunroof Glass to Front Sunroof Glass	0.0 +/- 0.0	Rear Sunroof Glass 0.0 to U/F 2.5
			Consistent within 1.5
21	Sunroof Glass to Front Roof	0.0 +/- 0.0	Sunroof Front 0.0 to U/F 2.5
			Sunroof Rear 0.0 to O/F 2.5
			Consistent within 1.5
22	Door Molding to Mirror Flag	0.0 +/- 0.5	Flag O/F 2.0 +/- 1.5 transitioning to 3.5 at top

23	Fender to A-pillar	2.0 +/- 1.0	0.0 +/- 1.0
		Parallel within 1.0	Cross Car within 1.0
		Side to side within 1.0
24	Door Molding to Body Side Aperture	4.5 +/- 1.5	Molding U/F 1.5 +/- 1.5
		Parallel within 1.5
25	Sill Moldings to Door Cladding	6.0 +/- 2.0	Cross car varies +/- 2.0
26	Fuel Door to Body Side Aperture	2.5 +/- 0.5	Door U/F 0.5 +/- 0.5

27	Body Side Aperture to Rear Fascia	1.0 +/- 1.0	Fascia U/F 0.5+/- 0.5 transitioning to flush at Lamp and Flare
28	Body Side Aperture Lamp to Body Side Aperture	0.0 + 0.5	Lamp U/F 0.5+/- 1.0 transitioning to 0.0 at top
		Parallel within 1.0
29	Body Side Aperture Lamp to Body Side Fascia	1.0 +/- 1.0	Varies +/- 1.0
		Side to side within 1.0
30	Liftgate to Fascia	4.0 +/- 1.5	Fascia (top) O/F 2.0+/- 1.5 transitioning to 1.5 at bottom
		Side to side within 1.5	Consistent within 1.5
31	Body Side Aperture Lamp to Liftgate Lamp	4.0 +/- 1.5	Varies +/- 1.5
		Parallel within 1.5	Consistent within 1.5
		Side to side within 2.0	Side to Side within 2.0
