Glass, Quarter: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the upper quarter trim from the side of the vehicle being serviced.
- Reposition the headliner on the side of the vehicle being serviced as necessary.CAUTION:
Be careful not to damage painted surfaces when removing moldings or cutting urethane around the fixed glass/windshield.

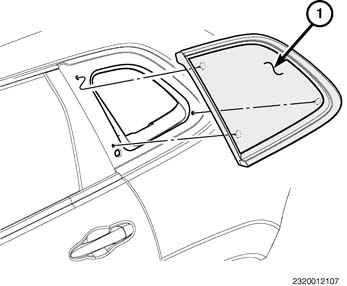

- Using a razor knife, cut the urethane adhesive that secures the quarter glass (1) to window fence (2).
- Carefully push the quarter window glass (1) from the opening.
