Seats, Front: Seat: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
multimedia:A supplement to the article is available.
NOTE:

The bolts may be a Mortorq® bolt and require a Mortorq® tool bit for removal and installation.

  1. Before proceeding with the following repair procedure, review all warnings and cautions. Refer to SEATS, REAR, WARNING .

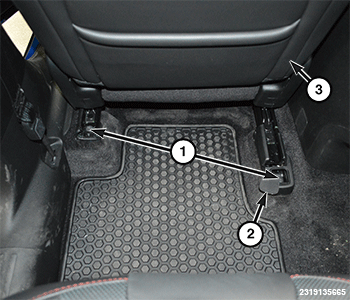

    GC0176946Courtesy of CHRYSLER GROUP, LLC
  2. Position the seat (3) in the full forward position.
  3. Remove the bolt cover (2) and both seat bolts (1).
  4. Move the seat to the full rearward position.
  5. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  6. Remove the front seat bolts.
  7. Tilt the seat up and unclip and disconnect the wire harness connectors, then remove the seat.
