Bin, Under Seat Storage: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

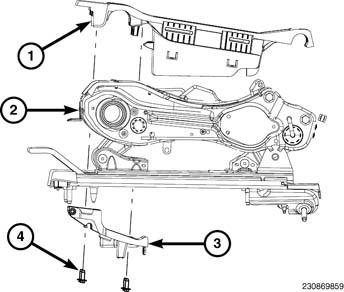

GC0156338Courtesy of CHRYSLER GROUP, LLC
  1. Remove the seat cushion and cover as an assembly. Refer to COVER, REAR SEAT CUSHION, 60%, REMOVAL .
  2. Remove the bolts (4) and remove the storage bin support (3).
  3. Lift and remove the storage bin (1) from the seat track assembly (2).
