Plate, Scuff, Door Sill: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

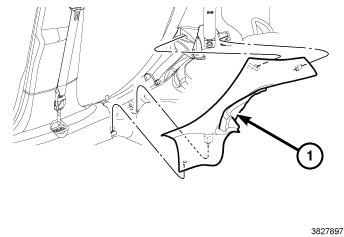

- Using (special tool #C-4755, Trim Stick), disengage the retaining clips securing the front door sill scuff panel (1) to the door sill and lower B-pillar.
- Remove the front door sill scuff panel (1).

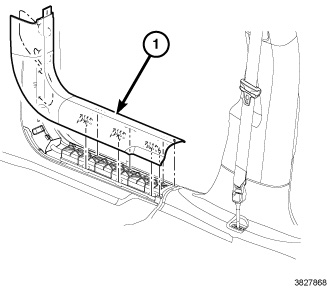

- Using (special tool #C-4755, Trim Stick), disengage the retaining clips securing the door sill scuff panel (1) to the door sill, lower B-pillar and lower C-pillar.
- Remove the rear door sill scuff panel (1).
