Panel, B-Pillar Trim: Removal: Upper

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

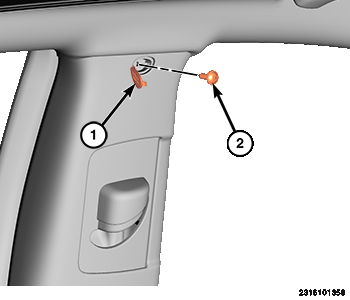

GC0173304Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Using a small flat bladed tool or equivalent, open the trim cap (1).
  3. Remove the screw (2).
    GC0159938Courtesy of CHRYSLER GROUP, LLC
  4. Release the front seat belt anchor. Refer to BUCKLE, SEAT BELT, REMOVAL .
  5. Using (special tool #C-4755, Trim Stick), pry the lower portion of the B-pillar trim (1) to disengage the retaining clips and route seat belt through B-pillar trim.
  6. Remove the upper B-pillar trim (1).
