Panel, B-Pillar Trim: Removal: Lower
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove sill trim panel, Refer to PLATE, SCUFF, LIFTGATE, REMOVAL .

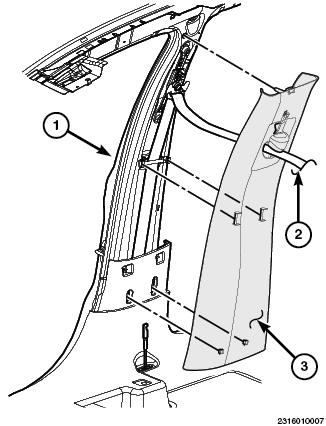

- Remove the upper B-pillar trim (1).

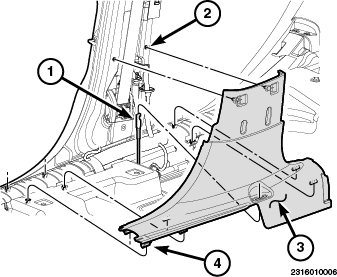

- Using (special tool #C-4755, Trim Stick), pry the upper portion of the lower B-pillar trim (1) to disengage the retaining clips.
- Using trim stick, pry up on the lower portion of the B-pillar trim (1) and remove from the vehicle.
