Cover, Steering Column Opening: Installation

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

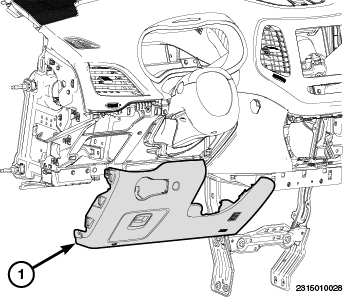

GC0159842Courtesy of CHRYSLER GROUP, LLC
  1. Connect all necessary electrical connectors.
  2. Position the steering column opening cover (1) back into place and seat the retaining clips fully.

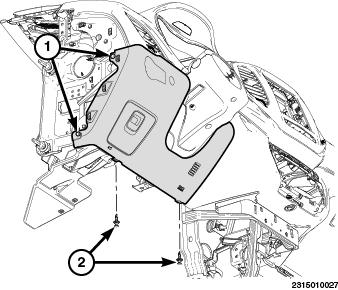

    GC0159485Courtesy of CHRYSLER GROUP, LLC
  3. Install the screws (1) and install the push pin fasteners (2).
    GC0158544Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Passenger side end cap shown (2), driver side similar.

  4. Install the end cap (2) and seat the retaining clips fully.
