Striker, Hood: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

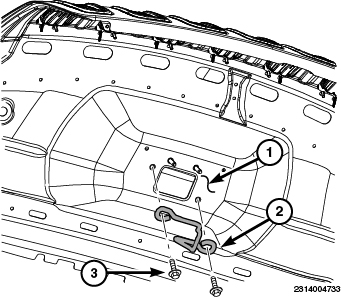

- Using reference marks made previously, align the striker (2) with holes in hood.
- Install the fasteners (3) securing the striker (2). Tighten the fasteners to 21 N.m (16 ft. lbs.)
- Verify fit of the hood striker (1) and operation of the latch. Adjust as necessary.
