Latch, Safety: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

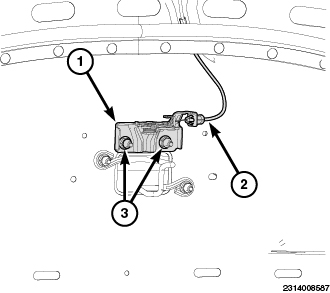

- Connect the release cable (2).
- Install the safety latch (1) and install the nuts (3)
 Courtesy of CHRYSLER GROUP, LLC
|

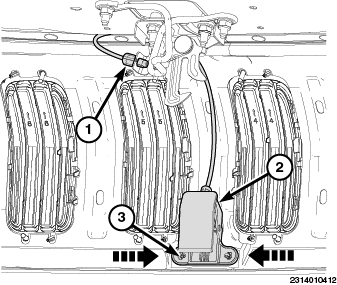

- Position the handle assembly (2) onto the hood and seat the clips (3) fully.
