Cable, Hood Release: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

Remove the push pins and remove the radiator closeout panel.

Courtesy of CHRYSLER GROUP, LLC

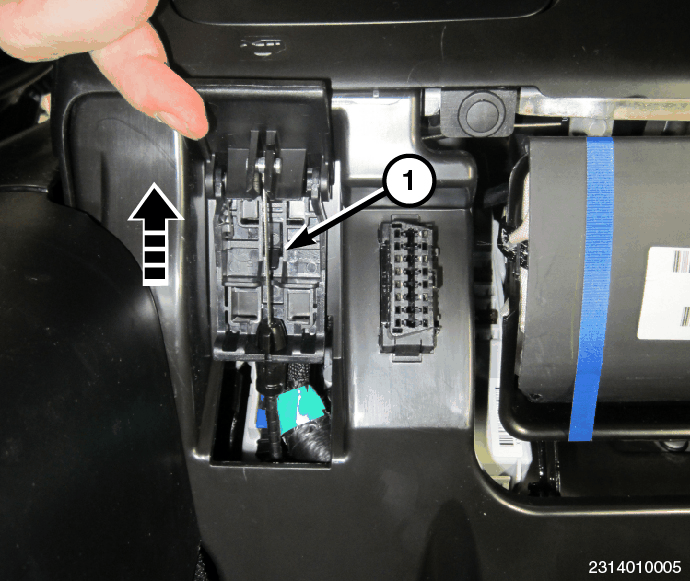

Remove the hood release handle by pushing up on the release (1) to disengage and then pulling rearward on the handle.

Courtesy of CHRYSLER GROUP, LLC
Disengage the cable (2) from the hood latch (3).

Courtesy of CHRYSLER GROUP, LLC
Release retaining clips/tabs attaching the hood release cable (1) to the left inner frame rail.

Courtesy of CHRYSLER GROUP, LLC
Disengage rubber grommet at lower dash panel.
From the vehicle interior pull the cable assembly (1) rearward.
Remove the hood release cable (1) from vehicle.
