Rack, Luggage: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|
NOTE:
If any of the four tabs are broken during removal, the cover must be replaced.
- Using a small flat bladed tool or equivalent, remove the two fastener covers (1).
- Remove the two fasteners (2) at the front and rear of the rail.
 Courtesy of CHRYSLER GROUP, LLC
|

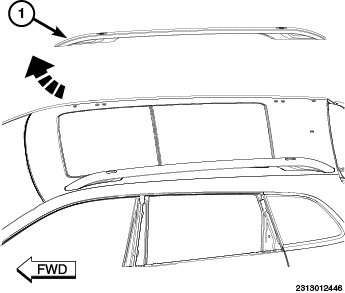

- Slide the roof rack rail (1) forward and remove.
