Section 22 (Body - Interior & Exterior): Exterior: Grille: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|
NOTE:

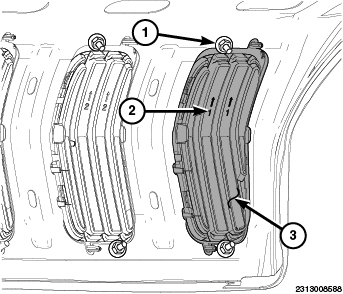

Each grille insert (3) is unique to it's spot on the hood and is numbered accordingly (2). Make sure the correct grille inserts are installed in the original position.
- Remove the nuts (1).
 Courtesy of CHRYSLER GROUP, LLC
|

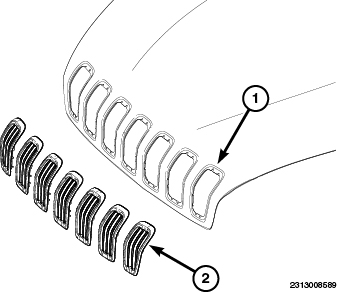

- Remove the grille inserts (2) from the hood (1) as needed.
