Door, Fuel Fill: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|
- Open the fuel fill door.

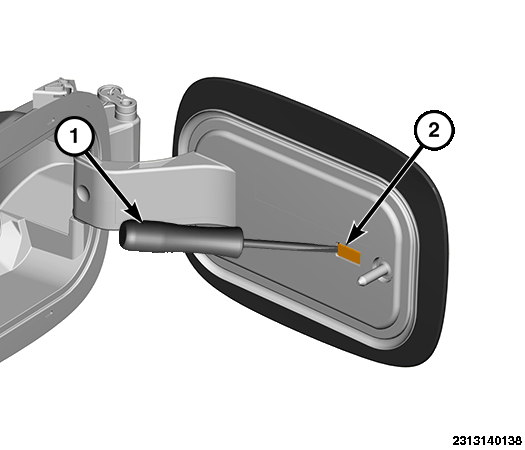

- Using a small flat bladed tool (1) or equivalent, release the retaining tab (2).
 Courtesy of CHRYSLER GROUP, LLC
|

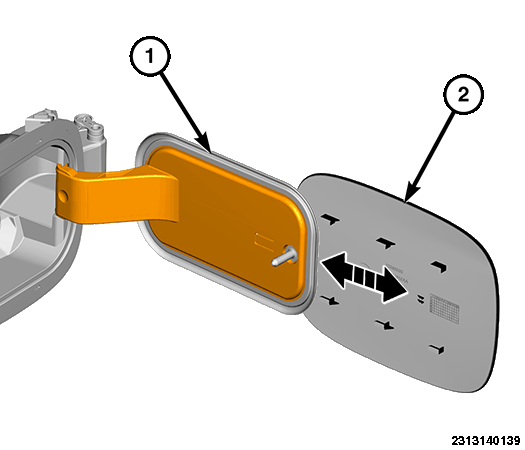

- Slide the gas door (2) outward to release from fuel filler housing (1).
- Remove fuel fill door.
