Regulator, Window: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

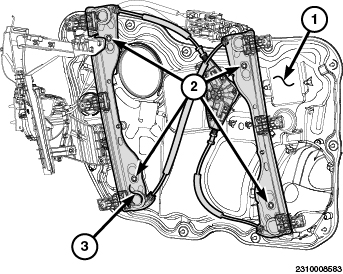

GC0159336Courtesy of CHRYSLER GROUP, LLC
  1. Remove the carrier plate (1). Refer to PLATE, CARRIER, REMOVAL .
  2. Remove fasteners (2) from the window regulator (3).
  3. Remove window regulator (3) from the carrier plate (1).
