Latch, Door: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

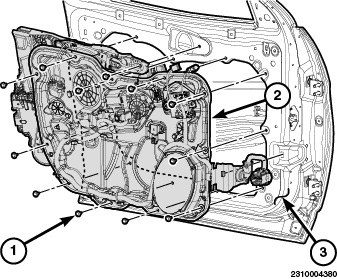

- Remove the carrier plate. Refer to PLATE, CARRIER, REMOVAL .

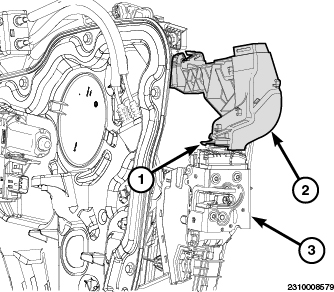

- With the use of a flat bladed tool or equivalent, gently pry up on tab (1) and slide the latch (3) off of the presenter bracket (2).

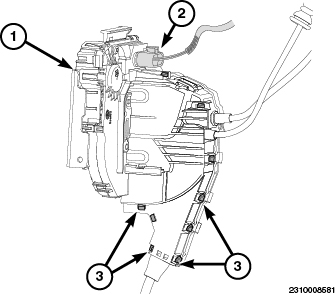

- Disconnect the electrical connector (2).
- Release the latch cover tabs (3) and remove the latch cover.

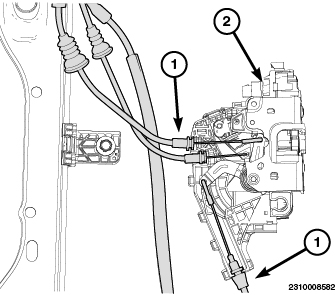

- Disconnect handle and lock cables (1) and remove the latch assembly (2).
