Switch, Terrain Select: Removal
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the shifter bezel. Refer to BEZEL, SHIFTER, REMOVAL
.NOTE:
Do not remove the shifter bezel, as it will fit through the opening once the bezel has been removed.

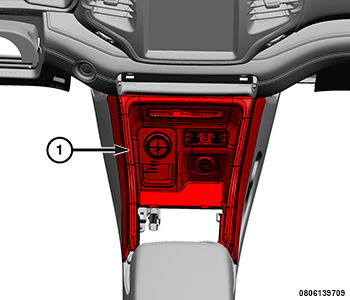

- Using a (special tool #C-4755, Trim Stick) or equivalent, separate the console bezel (1) and disconnect the Terrain switch wire harness connector.
- Using an appropriate tool, release the clip fasteners (1) and separate the Terrain Switch Bank Module (TSBM) from the console bezel.
